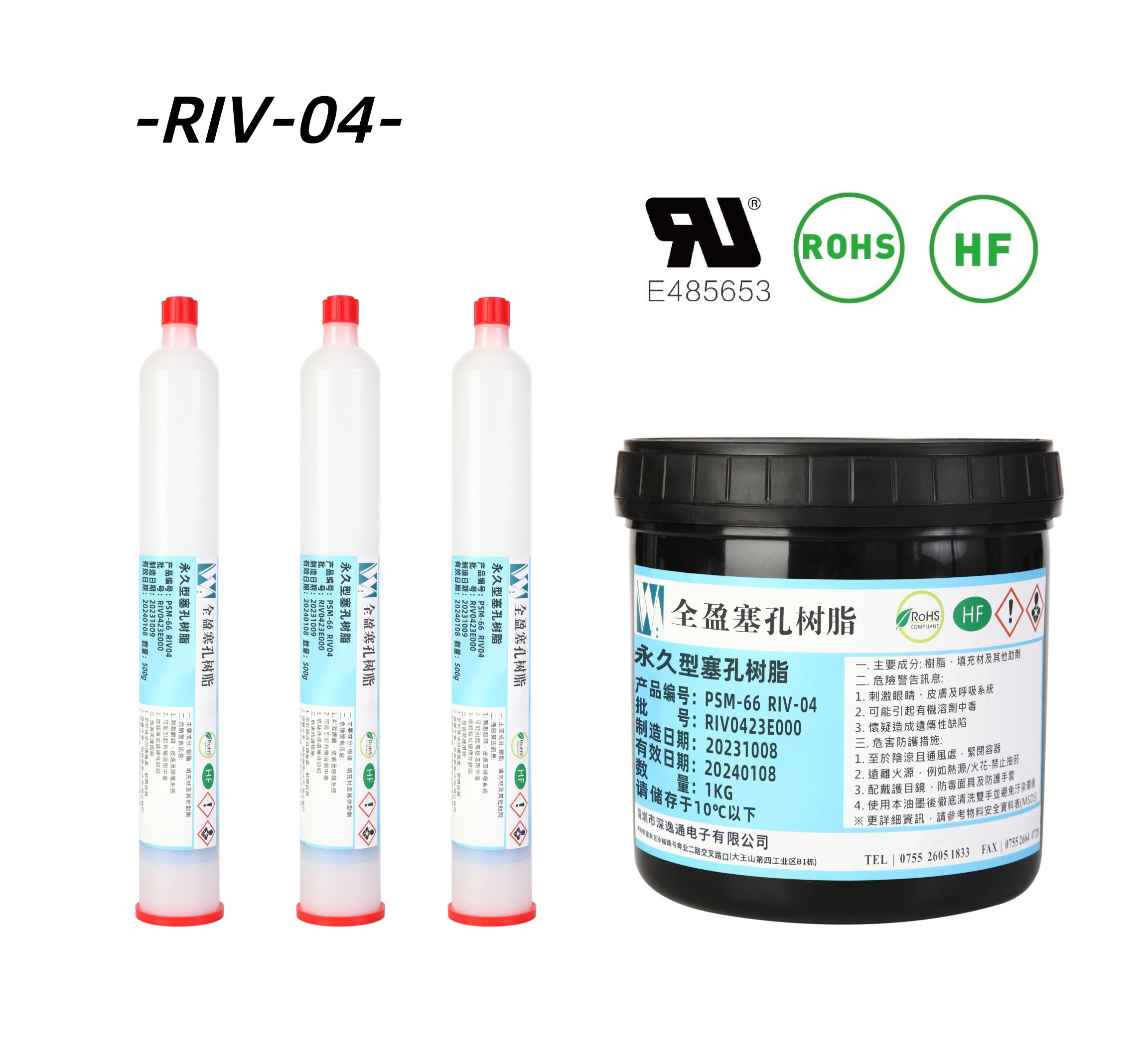

PSM-66 RIV-04

PSM-66 RIV-04 plug hole resin belongs to the halogen-free environmentally friendly products, the resin doesn't contain solvents and other harmful volatiles, can solve the problem of green oil blistering after lead-free tin spraying, this resin is suitable for selective resin plug hole process, resin plug holes out of the oil surface after the diffusion of a small, fast curing rate, to prevent the resin from entering the hole, can be a solution to the small spacing of plug holes bit problem. It has excellent high temperature resistance, no cracks, ultra-low diffusion, strong adhesion and chemical resistance.


Introductions

公司簡(jiǎn)介-深逸通樹(shù)脂 - 副本_01.png

Fields of application

PSM-66 RIV-04 hole plugging resin is used for inner and outer layers, HDI, POFV, normal through holes + back drilled holes, and highly selective plugging difficult products. This product is mainly used for FR-4 sheets, medium and high TG products.

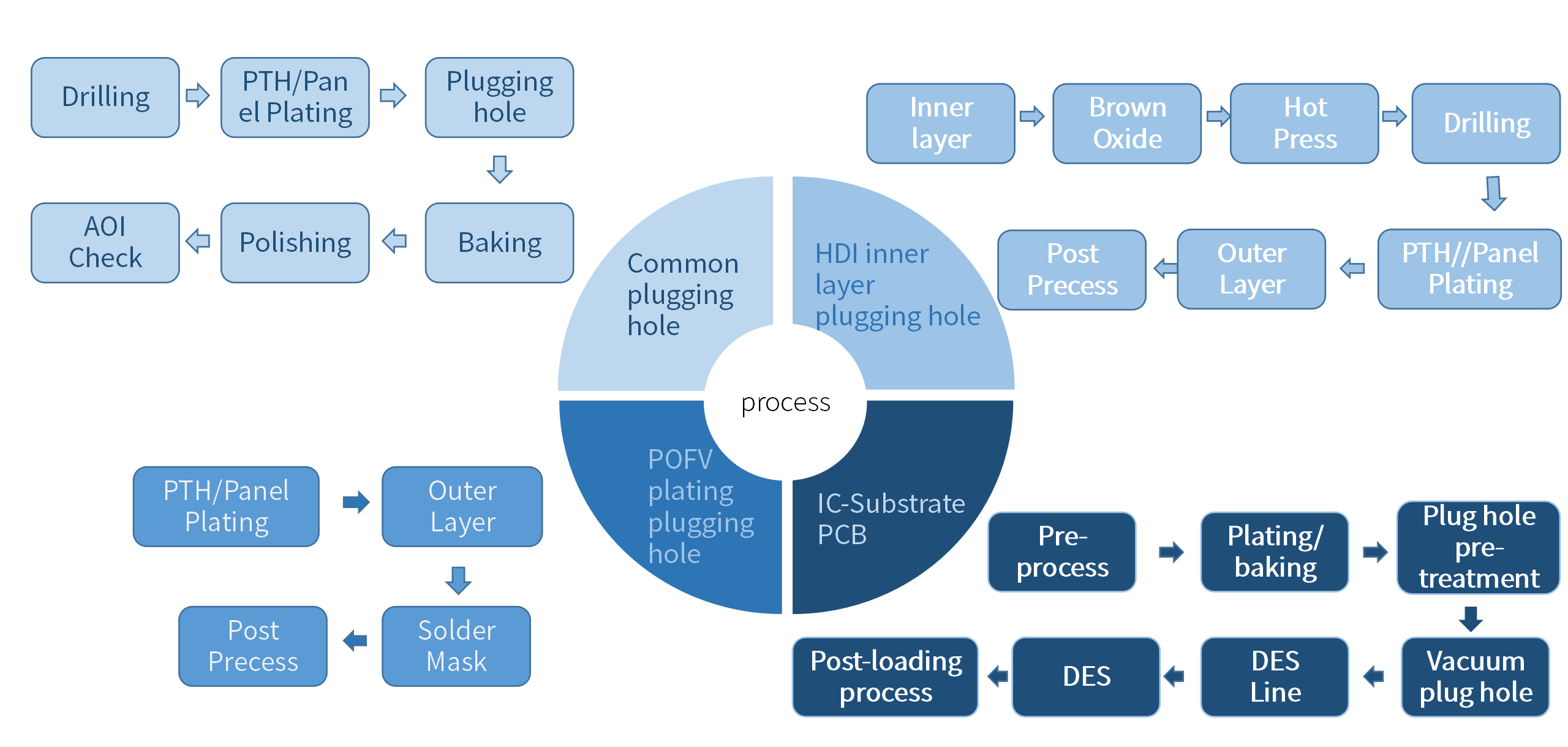

Illustration of plug holes for each type of plate







Technical Specifications

NO.

Physical

 indicator

Test MethodsReference StandardTest results
1Product Appearancevisual assessment/Yellowish white
2Solid ContentThermal Weightlessness GB 1725-79100%
3TgTMA(℃)IPC-TM-650 2.4.24140-150
4CTE
TMA(<Tg)α1(ppm)IPC-TM-650 2.4.2440-50
TMA(>Tg)α2(ppm)IPC-TM-650 2.4.24100-110
5Water AbsorptionGravimetric method(%)IPC-TM-650 2.6.2.1<0.1
6HardnessPencil methodIPC-TM-650 2.4.27.2≥6H
7Insulation ResistanceVoltage method(Ω)GB/T 10064-20061-3*1013
8AdhesionBaige +3m tape methodIPC-TM-650 2.4.1100/100
9Heat-proof material

Reflow soldering

260℃.60sec.3 cycle

IPC-TM-650 2.1.1.2Pass

Thermal Stress

288℃.10sec.5 cycles

IPC-TM-650 2.6.8Pass
10Chemical corrosion resistance 10wt% NaOH 25℃*30minIPC-TM-650 2.3.4.3Pass
11TCT測(cè)試-50℃/30minó150℃/30minIPC-TM-650 2.6.7.2Pass
1000cycles
12Viscosity(25℃)VISCOMETER TV-06-400-600
