Location: HOME > PRODUCTS > Paste

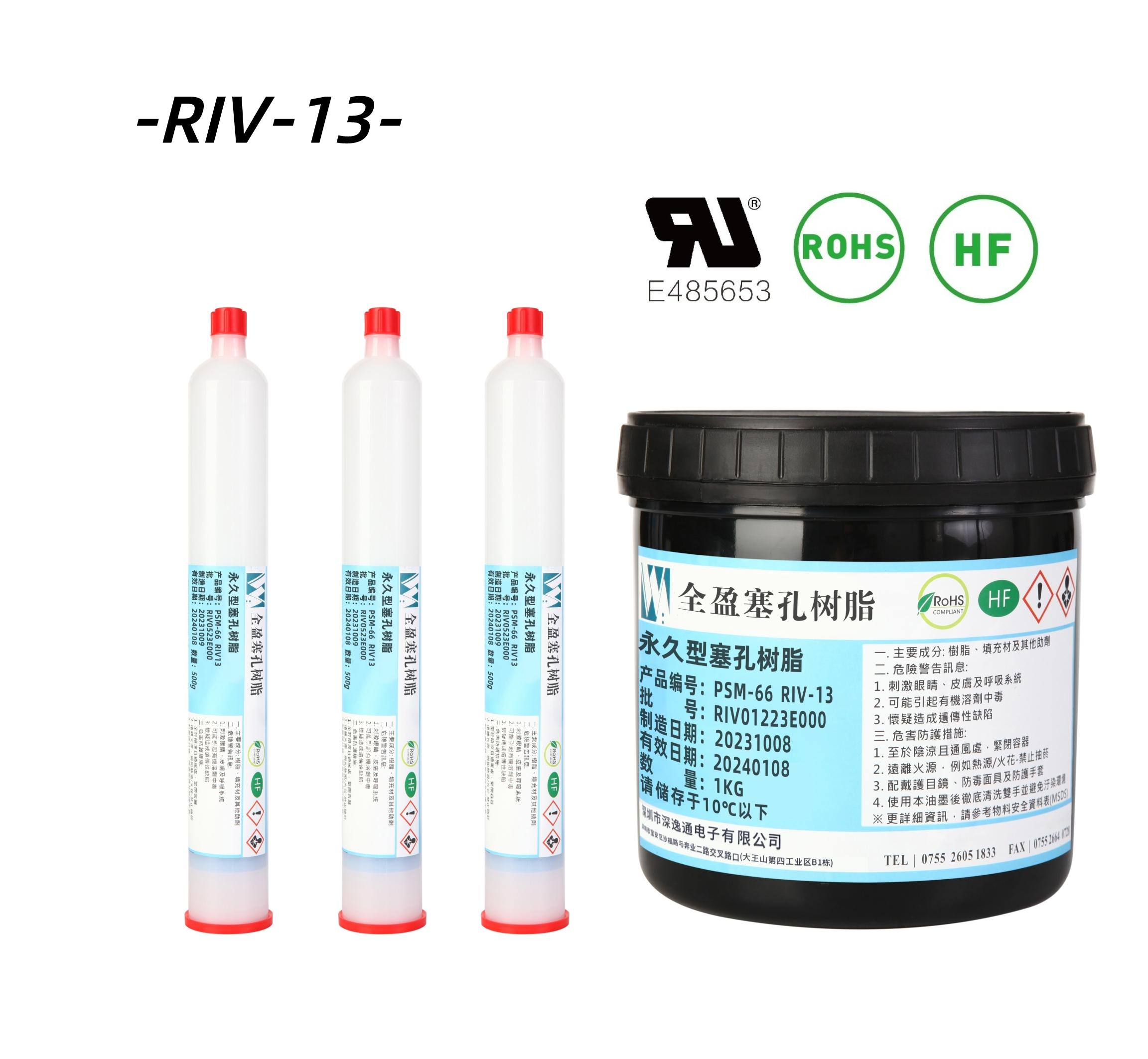

PSM-66 RIV-13

PSM-66 series of hole plugging resin for horizontal vacuum screen printing hole plugging machine plugging products, with high glass transition temperature, low CTE, low water absorption, no solvent, low shrinkage, easy to grind and other advantages. This type of product is especially suitable for high-frequency and high-speed plate hole plugging process, and its process characteristics are the first of its kind in China.

Introductions

公司簡(jiǎn)介-深逸通樹脂 - 副本_01.png

Fields of application

PSM-66 RIV-13 Plugging Resin for High Frequency and High Speed Plugging Processes.

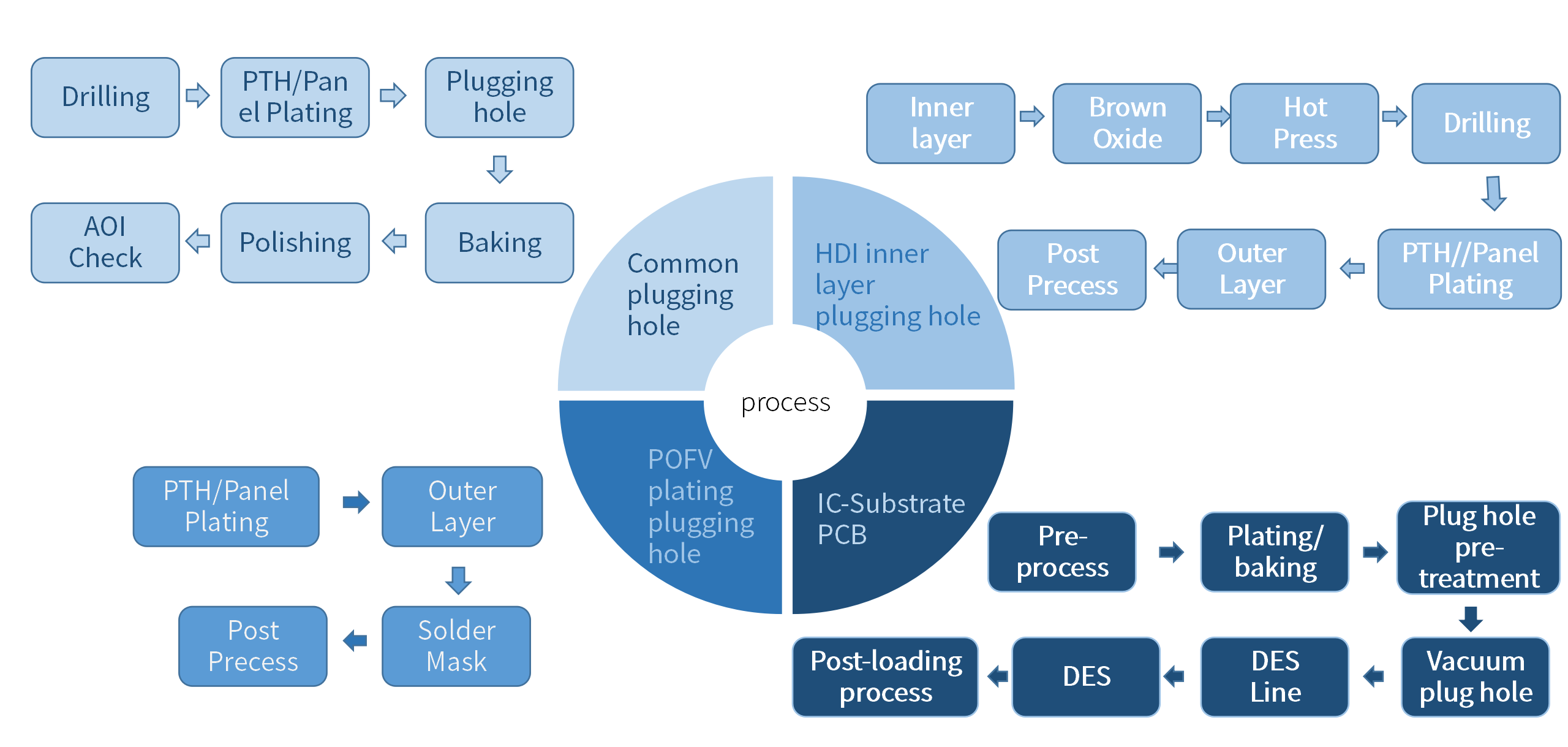

Illustration of plug holes for each type of plate


Technical Specifications

NO.

Physical

 indicator

Test MethodsReference StandardTest results
1Product Appearancevisual assessment/Yellowish white
2Solid ContentThermal Weightlessness GB 1725-79100%
3TgTMA(℃)IPC-TM-650 2.4.24160-170
4CTE

TMA(<Tg

α1(ppm)

IPC-TM-650 2.4.2440-50

TMA(>Tg)

α2(ppm)

IPC-TM-650 2.4.2490-100
5Water AbsorptionGravimetric method(%)IPC-TM-650 2.6.2.1<0.1
6HardnessPencil methodIPC-TM-650 2.4.27.2≥7H
7Insulation Resistance Voltage method(Ω)GB/T 10064-20061-3*1013
8AdhesionBaige +3m tape methodIPC-TM-650 2.4.1100/100
9Heat-proof material

Reflow soldering

260℃.60sec.3 cycles

IPC-TM-650 2.1.1.2Pass

Thermal Stress

288℃.10sec.5 cycles

IPC-TM-650 2.6.8Pass
10Chemical corrosion resistance 10wt% NaOH 25℃*30minIPC-TM-650 2.3.4.3Pass
11TCT test-50℃/30minó150℃/30minIPC-TM-650 2.6.7.2Pass
1000cycles
12Viscosity(25℃)VISCOMETER TV-35-350-550
