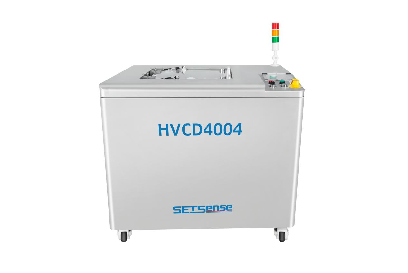

HVCD4004
Descriptions
A three-phase asynchronous motor is utilised to control the rotational speed and the vacuum is controlled by a single-stage rotary vane vacuum pump to ensure stable and reliable performance. Under vacuum conditions, the high-speed rotation of the paste can effectively remove the adulterated air and realise the high efficiency of debubbling of the recycle paste.
Specification
Size | 1064*898*1285mm （Includes three-colour lamp 335mm） |
Weight | 400KG |
Vacuum | ≤-99.5kpa |
Adjustable Speed Range | (50-950) rpm (recommended operating limit 800 rpm) |
NO. of cartridge | 560g×6pcs/times （Individual weight ±2g deviation） |
Cartridge Size | φ43×330mm |
Production Capacities
20 min/cycle | Paste : 0.5kg/unit (6 units can be removed at a time) | |
Production Capacity (KG) | Speed (rev/min) | |
Hourly production | 9 | 800 |
Daily output (22 hours) | 198 | 800 |
Monthly output (26 days) | 5148 | 800 |
Communal Requirement
Voltage Requirements | Three-phase AC 380V (three-phase five-wire system), 2.3KW, 50HZ Remarks: The main power supply outside the electric box is connected by the customer. |
Operating Environments | Temperature requirement: 22±2℃ Humidity requirement: 50±5% |
